SDC · ExitCheck
SDC delayed egress magnetic lock
- Verbal message, countdown and alarm tone
- Digital countdown display
- Built-in three-position keyswitch reset
Good forSingle exit doors
Delayed egress · SDC & RF Technologies
Exits stay secure for a few seconds,then release.
Delayed egress locks hold an exit door for 15 or 30 seconds, sound an alarm so staff can respond, and release immediately on a fire alarm signal. TBM installs SDC and RF Technologies hardware.
- Since 1979
- CSLB #711543 (B, C-10)
- Redlands, CA
- CSLB #711543 (B, C-10)
- Since 1979
- Family-owned in Redlands
- Alarm.com Authorized Dealer
- 4.5 on Yelp
How it works
Four steps at the door
Push
Someone pushes the exit device or door.
Alarm & countdown
A local alarm sounds and the countdown starts, with a voice message on SDC ExitCheck.
Door releases
After 15 seconds (30 where approved) the door unlocks.
Staff reset
The lock is reset by key or keypad.
Life safety first: SDC delayed egress locks release immediately in an emergency, and a signal from the fire alarm system releases the lock. SDC notes that all installations must be approved by the local Authority Having Jurisdiction.
Hardware
SDC and RF Technologies
SDC

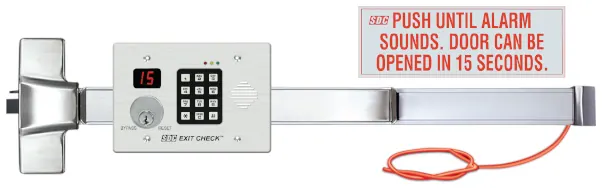

SDC delayed egress exit devices
- Push pad starts the 15 or 30 second cycle
- Panic and fire-rated models
- Pairs with an SDC delayed egress controller
Good forDoors that need panic hardware
SDC

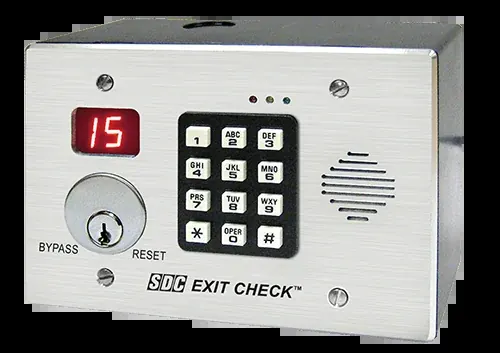

SDC delayed egress controller
- Controls one or two doors with slave locks
- Keypad reset and timed or sustained bypass
- UL 294 and CSFM listed per SDC
Good forDouble doors and existing hardware
RF Technologies

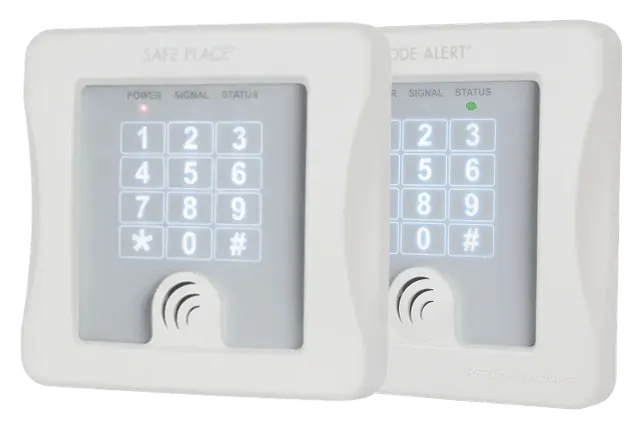

Touchpad Exit Controller
- 10-digit touchpad for staff bypass
- Works with Code Alert and Safe Place wander and infant protection
- Links to doors, elevators, card readers and CCTV
Good forSenior living, hospitals, maternity
Descriptions from SDC (sdcsecurity.com) and RF Technologies (rft.com) product pages. Delay time and operating mode are set to what your local authority approves.
Where it’s used
Common applications
Retail & theftSlow down exits through perimeter doors.
Memory careWander management with RF Technologies controllers.
MaternityInfant protection systems.
Public facilitiesControl pedestrian exits.
Let’s plan your coverage
Have a door you need to watch?
Tell us the door type, hardware and why it needs control.
